Essential Battery Protection for Your RV, Trailer, or Vehicle

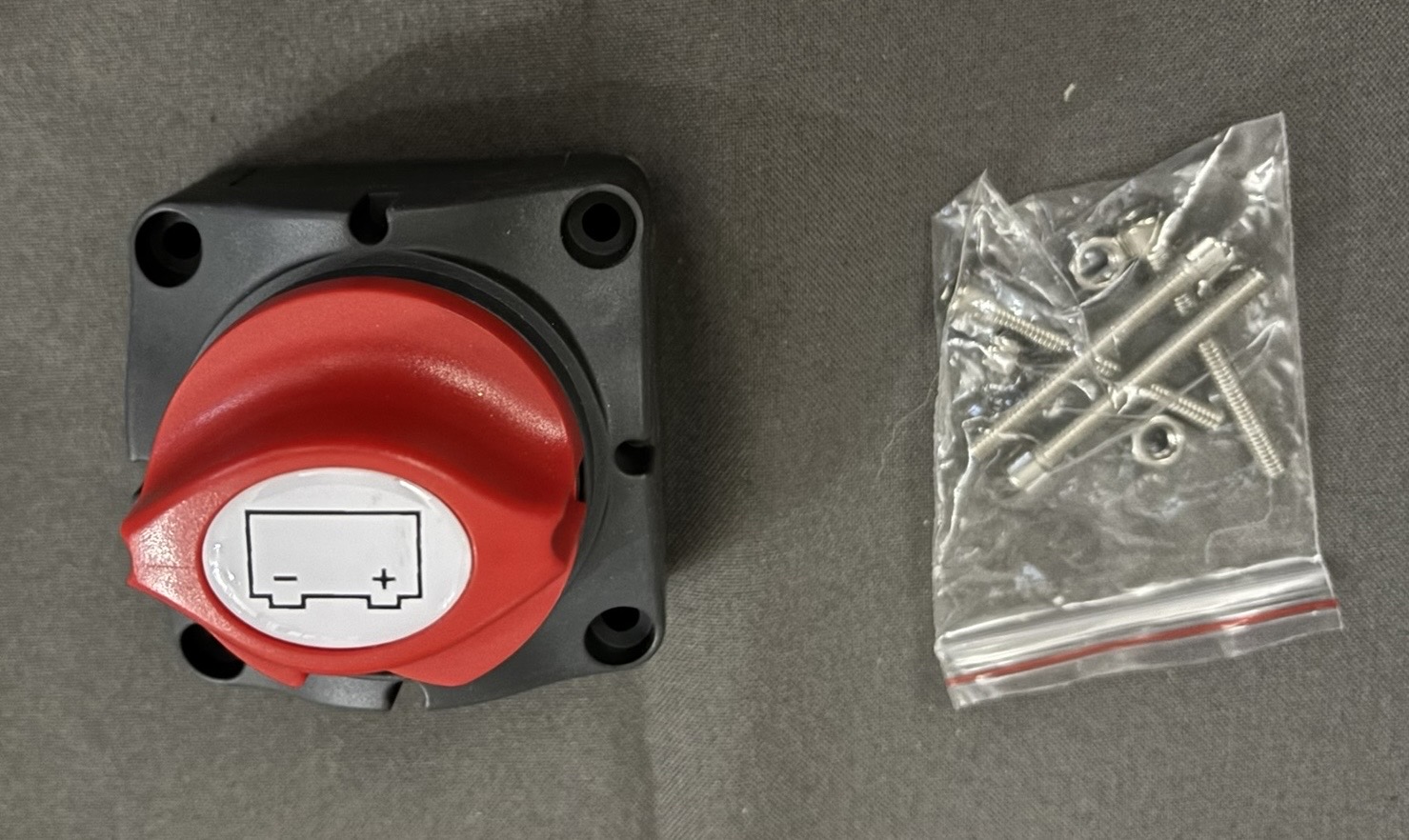

Take control of your electrical system with the Fastronix BATD-701 battery master disconnect switch. This professional-grade rotary switch provides reliable, positive ON/OFF control for your entire 12V, 24V, 36V, or 48V DC electrical system. Whether you’re storing your RV for the winter, working on your electrical system, or simply want to prevent parasitic battery drain, this disconnect switch delivers peace of mind and battery protection.
The Battery Drain Problem
Modern RVs, boats, and vehicles have dozens of electronic components that draw power even when everything appears to be “off.” Stereos retain memory settings. Propane leak detectors stay active. CO2 monitors run continuously. Inverters maintain standby mode. These phantom loads slowly drain your battery during storage, often leaving you with a dead battery when you’re ready to hit the road. Even worse, a parasitic drain can damage your battery through deep discharge cycles, significantly shortening battery life.
The Fastronix Solution
The BATD-701 master disconnect switch completely isolates your battery from your electrical system with a simple quarter-turn of the handle. No more trickle chargers. No more disconnecting battery cables. No more wondering if your battery will be dead when you return. Just flip the switch to OFF before storage, and flip it back to ON when you’re ready to roll.
Professional-Grade Design Features
Unlike cheap battery switches that fail after a few uses, the Fastronix BATD-701 is built for years of reliable service:
- Heavy-Duty Rotary Contacts: Solid brass internal contacts handle high current without overheating or degrading
- Spring-Loaded OFF Position: Switch automatically returns to OFF when released, preventing accidental power-on
- Clear Position Indicator: Top-mounted arrow shows exact switch position at a glance
- Weather-Resistant Housing: Black powder-coated aluminum case protects internals from moisture and corrosion
- Contour Low-Profile Design: Compact form factor fits in tight spaces where traditional round switches won’t
- Positive Click Action: Definite mechanical detent provides tactile confirmation of switch position
- Wide Voltage Range: Works with 12V, 24V, 36V, and 48V DC systems
Versatile Applications
- RV & Travel Trailers: Prevent battery drain during storage, isolate system for electrical maintenance, provide emergency power cutoff, extend battery life between trips
- Boats & Marine: Required safety equipment for many applications, disconnect before shore power hookup, isolate starting battery from house battery system, prevent galvanic corrosion
- Work Trucks & Equipment: Prevent battery drain on seasonal equipment, isolate auxiliary battery banks, safety disconnect for service work, protect electronics during maintenance
- Solar & Off-Grid Systems: Battery bank isolation and safety disconnect, emergency shutoff for maintenance, prevent backfeed from solar panels, system testing and troubleshooting
- Race Cars & Performance Vehicles: NHRA-style disconnect switch design, battery relocation applications, paddock safety requirement, quick power isolation for tech inspection
Simple, Professional Installation
Installation is straightforward for anyone comfortable with basic automotive electrical work:
- Choose Location: Mount switch between battery positive terminal and electrical system main feed
- Mount Switch: Secure with four included screws to any flat surface
- Connect Cables: Attach battery positive to one terminal, system positive to other terminal
- Test Operation: Turn handle to ON position and verify electrical system operation
- Label Switch: Mark clearly for future reference
The switch terminals accept battery cables up to 2/0 gauge. Use appropriate terminal lugs (3/8″ hole) and secure with included brass nuts and lock washers. For best results, use marine-grade heat shrink over all connections.
Installation Tips:
- Mount in accessible location for easy operation
- Keep away from battery to prevent acid vapor exposure
- Use proper gauge wire for your amperage requirements
- Consider adding waterproof boot for outdoor installations
- Apply dielectric grease to terminals for corrosion resistance
